Printed Parts MK1

Project Info:

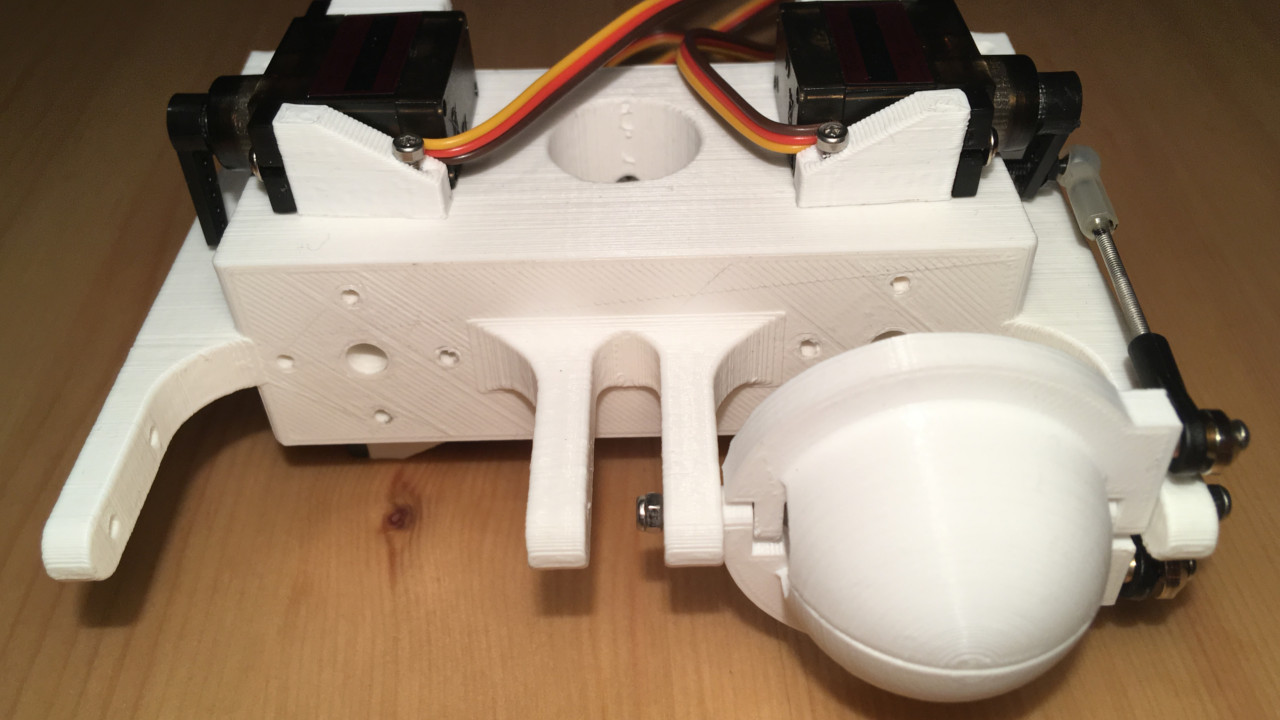

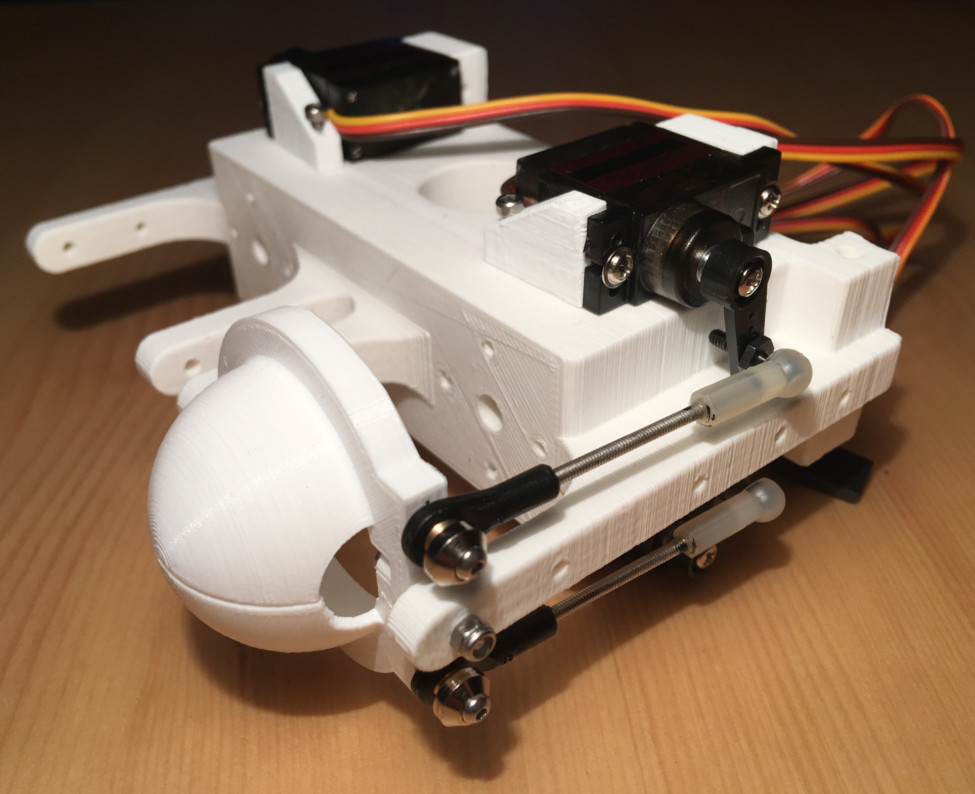

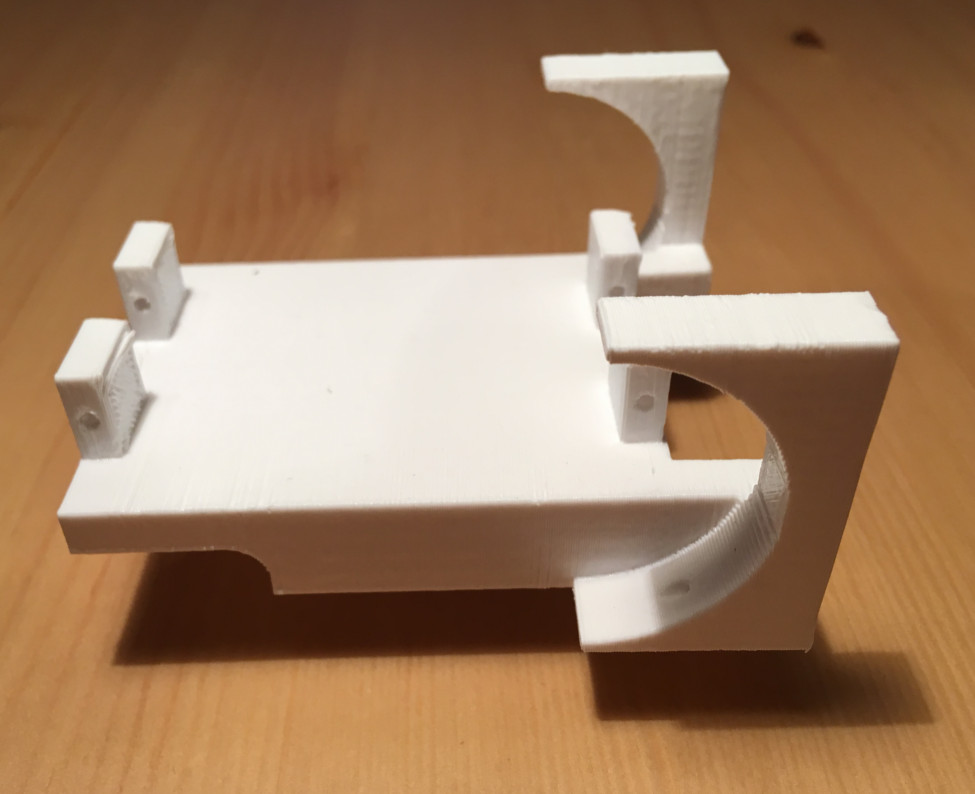

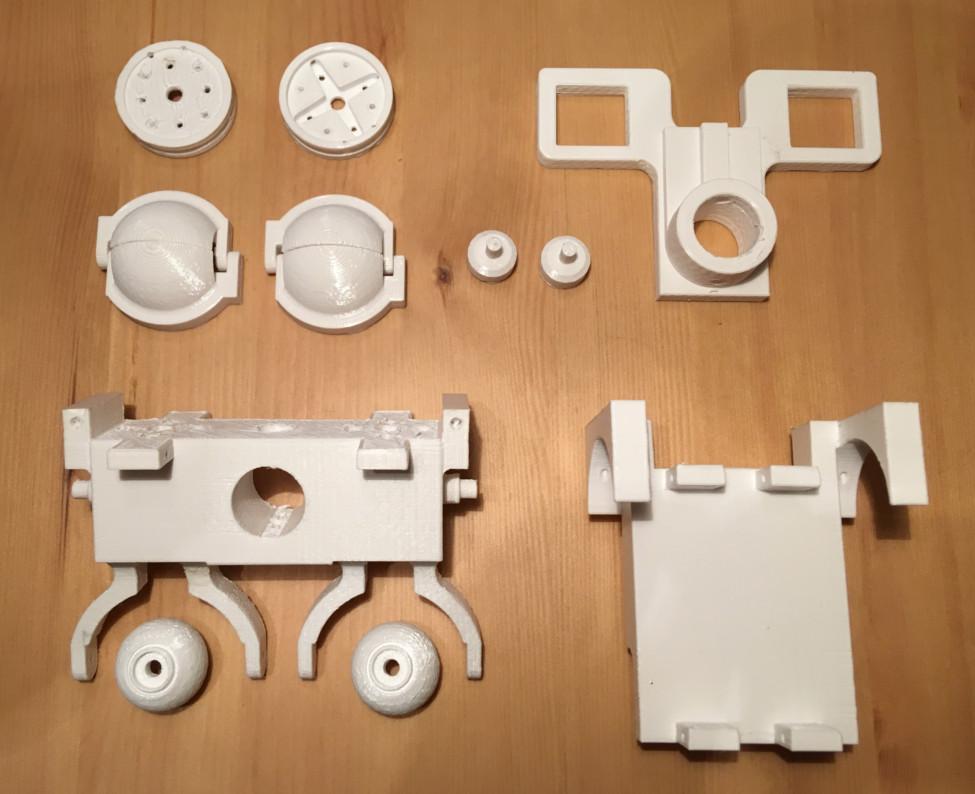

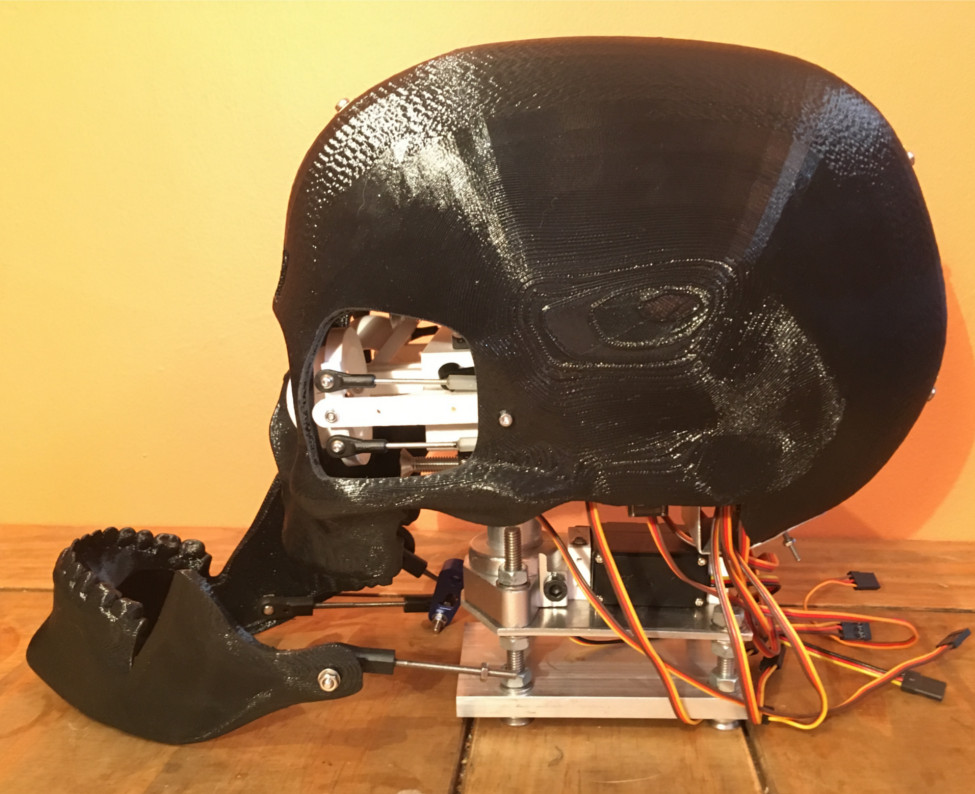

This is sort of a MK1 version of an eye mechanism I modelled earlier this year, but after assembling I just wasn't happy with the movement I was getting. Furthermore, this design was created during a learning period with regards to pivot points and servo torque which play crucial factors in robotics, but printing this model did at least help me having a physical mock up to work with and test geometries. This model was created in Fusion 360 and the parts were 3D Printed using an Original Prusa i3 MK2S in Generic Standard ABS. An updated animatronic mechanism can be viewed here - Animatronic Project

  • Created by: K Meadows
  • Completed on: 21st March 2018
  • Software: Autodesk Fusion 360
  • Purpose:Prototype
